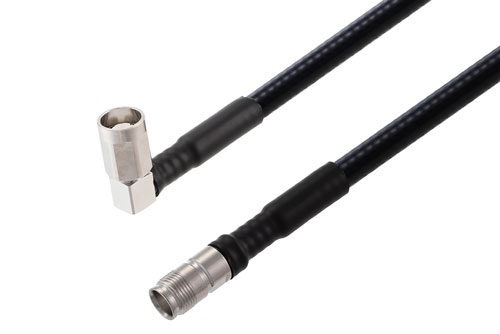

Radio frequency assembly NEX10 male right angle to NEX10 female low PIM cable using SPF-250 coax from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack low PIM (Passive Intermodulation, also called Intermod for short) coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The NEX10 male right angle to NEX10 female low PIM cable using SPF-250 coax, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom NEX10 to NEX10 cable assembly orders will the ship same business day as well.
Pasternack RF coax low PIM cable assembly is built with right angle a NEX10 cable connection on one end and a NEX10 cable connection on the other. Our low PIM right angle a NEX10 to a NEX10 cable assembly has male gender on end 1 and female on end 2. PE3W17859 can also be known as a low PIM right angle NEX10 plug to NEX10 jack cable assembly and will be shipped the same day as it is purchased. This RF cable assembly with a 0.5-inch diameter has copper clad aluminum as the cable's inner conducting material and Foam PE dielectric type.
NEX10 low PIM cable assemblies from Pasternack are ideal for general purpose, laboratory use and low pim applications. Our PE3W17859 RF cable has a FRPE jacket of 0.303-inch diameter. This radio frequency cable assembly can withstand temperatures ranging from -40 to 85 degrees C. The corrugated RF cable has an in-series connection.
NEX10 plug to NEX10 jack cable assembly PE3W17859 is built with SPF-250 which is a corrugated coax type. The Pasternack low passive intermodulation corrugated NEX10 cable assembly is manufactured with right angle NEX10 to NEX10 cable connectors and has a 50 Ohm impedance, and is single shielded. Both the connectors have a solder/solder attachment method and a brass body with tri-metal plating. Additional dimensions, specifications and CAD drawings for this low PIM RF cable are available on our downloadable PDF datasheet. PE3W17859 can also be used in the other direction and will be NEX10 female to right angle NEX10 male cable assembly if the opposite connectivity is required.
Low PIM NEX10 right angle plug to NEX10 jack cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality NEX10 to NEX10 cable assembly for quick shipment worldwide. Variations of NEX10 cable assemblies can also be built and will ship same-day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal NEX10 to NEX10 low PIM RF cable assembly as per your requirements.
