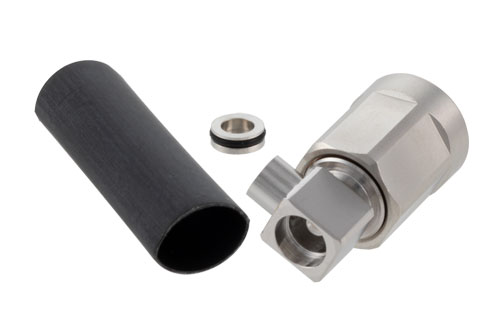

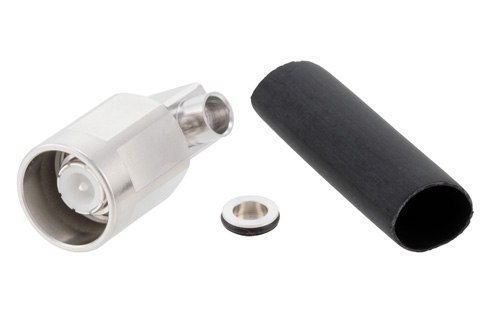

NEX10 Male Right Angle Low PIM Connector Solder Attachment for TFT-5G-402

Name: NEX10 Male Right Angle Low PIM Connector Solder Attachment for TFT-5G-402
Brand: Pasternack
SKU: TC-402-NX10M-RA-LP
Availability: InStock

Product ID: TC-402-NX10M-RA-LP

Pricing

Quantity	Price
1-24	$32.19
25-49	$30.90
50-99	$29.94
100-249	$29.29
250+	Call Us

* All Prices are in US Dollars and do not include duties

Buy

How many?

Available Quantity: 18

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties

View
Datasheet

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Polarity	Standard
Connector Series	NEX10
Connector Gender	Male
Impedance	50 Ohm
Body Style	Right Angle
Attachment Method	Solder/Solder
Mount Method	None
Minimum Frequency	DC
Maximum Frequency	4 GHz

Description

NEX10 Male Right Angle Low PIM Connector Solder Attachment for TFT-402

TC-402-NX10M-RA-LP NEX10 male right angle coaxial connector has an interface type of TFT-402 and a 50 Ohm impedance. Pasternack NEX10 male connector uses shield/contact solder/solder as an attachment method. Our male NEX10 right angle coaxial connector provides a minimum frequency of DC and a maximum frequency of 4 GHz.

The Pasternack right angle NEX10 male coaxial connector has a PTFE dielectric type and a VSWR of 1.3. The Pasternack NEX10 coaxial connector has a brass body with tri-metal plating. Our TC-402-NX10M-RA-LP NEX10right angle connector uses brass contact. This NEX10 male right angle coaxial RF connector is RoHS and REACH compliant.

This Pasternack right angle male NEX10 connector will ship the same day as purchased. Our NEX10 right angle male connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom NEX10 connector cable assemblies that will ship the same day as well.
