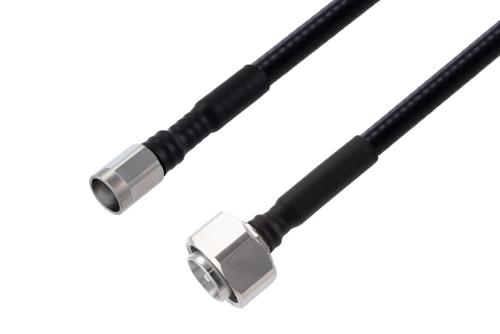

Radio frequency assembly NEX10 male to 4.3-10 male low PIM cable using 1/4 inch superflexible coax with heatshrink, LF solder from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack low PIM (Passive Intermodulation, also called Intermod for short) coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The NEX10 male to 4.3-10 male low PIM cable using 1/4 inch superflexible coax with heatshrink, LF solder, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom NEX10 to 4.3-10 cable assembly orders will ship the same business day as well.
Pasternack RF coax low PIM cable assembly is built with a NEX10 cable connection on one end and a 4.3-10 cable connection on the other. Our low PIM NEX10 to 4.3-10 cable assembly has a male gender on end 1 and a male on end 2. PE3C8430LF/HS can also be known as a low PIM NEX10 plug to 4.3-10 plug cable assembly and will be shipped the same day as it is purchased. This corrugated RF cable assembly with a 0.5-inch diameter has copper clad aluminum as the cable's inner conducting material and PE (F) dielectric type.
This cable assembly employs durable and flexible materials, and with a 1-inch bend radius, it can withstand repetitive movements, ensuring reliable performance over extended periods. Our PE3C8430LF/HS RF cable has a PE jacket of 0.303-inch diameter. This radio frequency cable assembly can withstand temperatures ranging from -40 to 85 degrees C. The corrugated RF cable has a between series connection. This cable assembly has a typical propagation velocity of 82% and a minimum RF shielding of 120 dB. Our NEX10 male to 4.3-10 male cable has a maximum VSWR of 1.4:1.
NEX10 plug to 4.3-10 plug cable assembly PE3C8430LF/HS is built with 1/4" superflexible which is a corrugated coax type. The Pasternack low passive intermodulation corrugated NEX10 cable assembly is manufactured with NEX10 to 4.3-10 cable connectors, has a 50 Ohm impedance, and is single shielded. Both the connectors have a solder/solder attachment method and a brass body with tri-metal plating. Additional dimensions, specifications and CAD drawings for this low PIM RF cable are available on our downloadable PDF datasheet. PE3C8430LF/HS can also be used in the other direction and will be a 4.3-10 male to NEX10 male cable assembly if the opposite connectivity is required.
Low PIM NEX10 plug to 4.3-10 plug cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality NEX10 to 4.3-10 cable assembly for quick shipment worldwide. Variations of NEX10 and 4.3-10 cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal NEX10 to 4.3-10 low PIM RF cable assembly as per your requirements.
