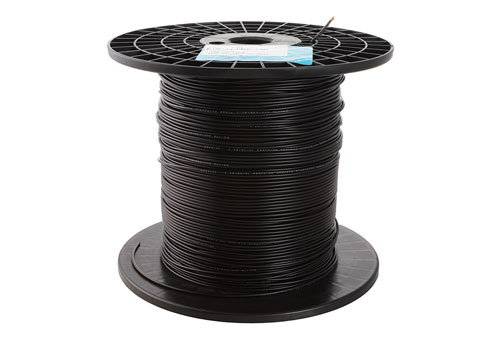

RG174NM-BULK part number from Pasternack is a RG174 non-magnetic coax cable that is flexible. Pasternack flexible coax RF cable has an impedance of 50 Ohm and a PE dielectric. Our RG174 coax cable is constructed with a jacket made of PVC. This RF coaxial cable is ideal for general purpose test, custom cable assemblies, medical, military and aerospace and quantum computing. This black-colored non-magnetic coax cable has a nominal capacitance of 31.7 pF/Ft.
Our coax cable from Pasternack has a maximum frequency of 100 MHz. Additional specifications for this RG174NM-BULK single shielded RF coaxial cable are on our downloadable PDF datasheet above. This non-magnetic RF cable has an outer conductor of copper and a repeat minimum bend radius of 1.5 inch.
Our RG174 coax cable can operate at temperatures ranging from -40 to +105 degrees C. Our black-colored coax cable has a typical insertion loss/attenuation of 12.5 dB/100ft at frequency of 100 MHz. The RG174NM-BULK flexible RF cable has a solid copper center conductor.
Pasternack RG174 non-magnetic coax cables are part of our RF, microwave, and millimeter wave components. These flexible cables and our other RF parts are available for same-day shipping worldwide. Custom RF cable assemblies using RG174 or other coax can be built and shipped the same business day as well.
