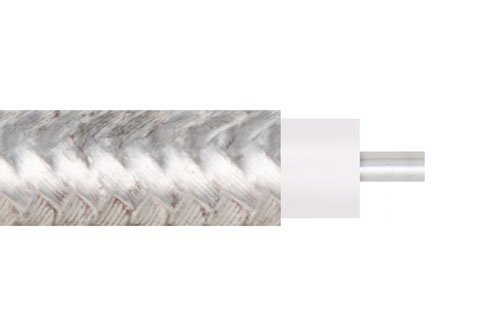

The PE-141FL-NM part number from Pasternack is a .141 semi-rigid coax cable that is formable. Pasternack formable coax RF cable has an impedance of 50 Ohm and a PTFE dielectric. Our PE-141FL-NM coax cable is constructed with a jacket made of copper. This RF coaxial cable is ideal for general purpose test, custom cable assemblies, medical, military and aerospace and quantum computing.
The PE-141FL-NM formable RF cable has a shield count of 1 and RF shielding of 90 dB. Our coax cable from Pasternack has a maximum frequency of 34 GHz. The outer shield diameter of this RF cable is 0.141 and has outer conductor of copper-tin composite. Additional specifications for this PE-141FL-NM single-shielded RF coaxial cable are on our downloadable PDF datasheet above.
Our PE-141FL-NM coax cable can operate at temperatures ranging from -55 to 200 degrees C. The PE-141FL-NM coax RF cable has a solid silver plated copper center conductor. This coax cable from Pasternack has a repeat minimum bend radius of 0.375 inch.
Pasternack .141 semi-rigid coax cables are part of RF, microwave and millimeter wave components. These formable cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using PE-141FL-NM or other coax can be built and shipped the same business day as well.
