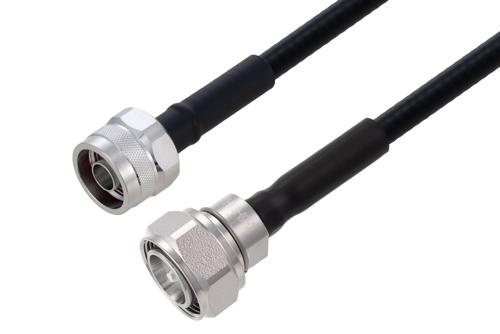

Radio frequency assembly outdoor rated 4.3-10 male to N male low PIM cable using SPO-250 coax with Times Microwave components from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack low PIM (Passive Intermodulation, also called Intermod for short) coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The outdoor rated 4.3-10 male to N male low PIM cable using SPO-250 coax with Times Microwave components, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom 4.3-10 to type N cable assembly orders will ship the same business day as well.
Pasternack RF coax low PIM cable assembly is built with a 4.3-10 cable connection on one end and a type N cable connection on the other. Our low PIM 4.3-10 to type N cable assembly has a male gender on end 1 and a male on end 2. PE3C10332 can also be known as a low PIM 4.3-10 plug to type N plug cable assembly and will be shipped the same day as it is purchased. This corrugated RF cable assembly with a 0.5-inch diameter has copper clad aluminum as the cable's inner conducting material and Foam PE dielectric type.
The minimum bend radius for this cable is 1.25 inches, allowing for a single bend without damaging the cable. Our PE3C10332 RF cable has a PE jacket of 0.303-inch diameter. This radio frequency cable assembly can withstand temperatures ranging from -40 to 85 degrees C. The corrugated RF cable has a between series connection. Our 4.3-10 male to type N male cable has a maximum VSWR of 1.4:1.
4.3-10 plug to type N plug cable assembly PE3C10332 is built with SPO-250 which is a corrugated coax type. The Pasternack low passive intermodulation corrugated 4.3-10 cable assembly is manufactured with 4.3-10 to type N cable connectors, has a 50 Ohm impedance, and is single shielded. Both the connectors have a solder/solder attachment method and a brass body with tri-metal plating. Additional dimensions, specifications and CAD drawings for this low PIM RF cable are available on our downloadable PDF datasheet. PE3C10332 can also be used in the other direction and will be a type N male to 4.3-10 male cable assembly if the opposite connectivity is required.
Low PIM 4.3-10 plug to type N plug cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality 4.3-10 to type N cable assembly for quick shipment worldwide. Variations of 4.3-10 and type N cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal 4.3-10 to type N low PIM RF cable assembly as per your requirements.
