SMP Coaxial Connectors

• Choose from 8 GHz and 40 GHz versions

• Contact and body materials gold plated beryllium copper (BeCu)

• 047 and 086 semi-rigid coax as well as flexible RG178, RG196 versions available

• Male Bulkhead cable connectors for .086 semi-rigid

SMP PCB Connectors

• Choose from 8 GHz and 40 GHz versions

• Contact and body materials gold plated beryllium copper (BeCu)

• Smooth Bore, Limited Detent and Full Detent versions available

• Surface Mount, Thru Hole, End Launch, and Edge Launch versions

• Thru Hole PCB connectors are available in 3 leg and 4 leg versions

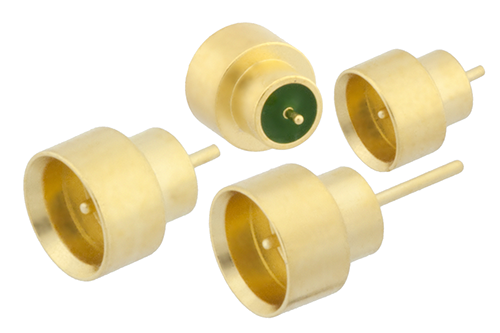

Hermetically Sealed SMP Terminals

• Choose from 8 GHz and 40 GHz versions

• Housing material Kovar per ASTMF15 with Corning 7070 glass

• Smooth Bore, Limited Detent and Full Detent versions

• 0.15 diameter contacts vary from .03 to .130 inches in length

• Pre Tinned contact options available

SMP Shrouds

• Operate up to 40 GHz when mated with the appropriate glass beads

• Standard housing material stainless steel per ASTM A582

• Smooth Bore, Limited Detent and Full Detent versions available

• Flange Mount, Press-In, Thread-In, and Surface Mount PCB versions

• Flange Mount hole spacing options of .282, .328, .354, and .481

Mini-SMP Connectors

• Operate up to 65 GHz

• Available in Coax Cable, PCB Mount, and Terminal configurations

• Female Straight and Right Angle connectors for 047 and 086 semi-rigid coax options available
