Pasternack Introduces New Line of
L and S Band High Gain Amplifiers Covering 1.2 - 1.4 GHz and 3.1 – 3.5 GHz
1.2 GHz – 1.4 GHz (L Band) High Gain Amplifiers
Product Features
• SMA connectors, 50 ohm Input/Output
• 10 Watt & 20 Watt High Gain SSPA, LNA & Driver PA
• 1.2 to 1.4 GHz and 3.1 to 3.5 GHz Frequency Range
• Hermetically-sealed modules
• GaAs pHEMT based technology
• Unconditionally stable
• High Power Output: 28 to 43 dBm
• High Gain: 40 dB min
• Low Noise Figure 1.1 dB & 1.5 dB, LNA models
• Gain Flatness: ±0.5 to 1.5 dB
• EAR99 (No Export License Required)
In-stock and available
to ship today!

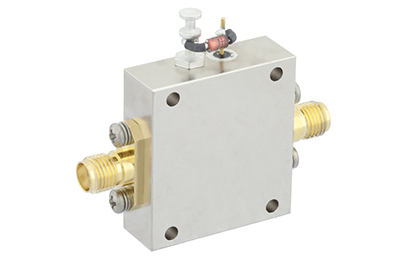

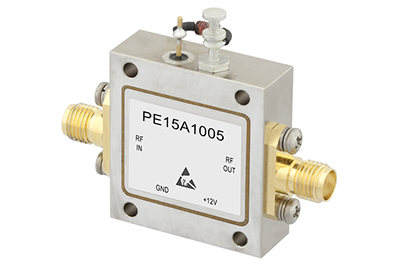

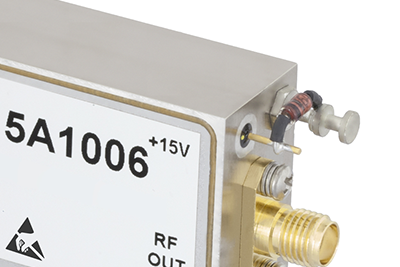

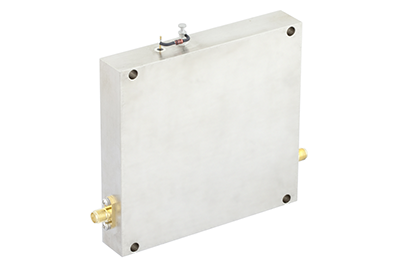

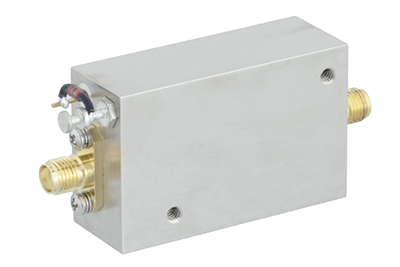

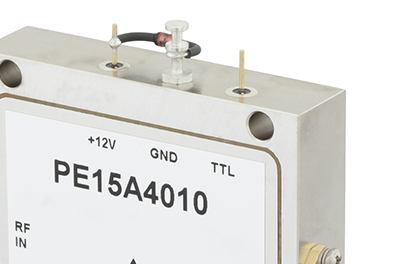

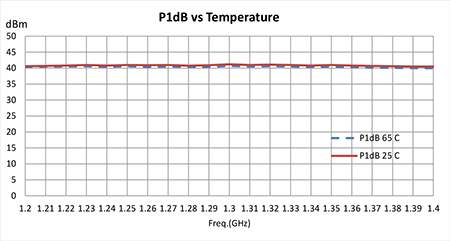

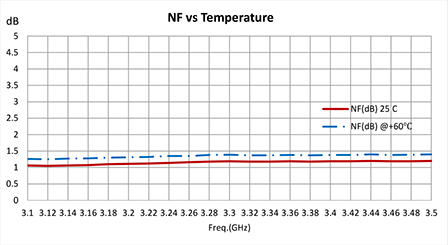

40 dB Gain, 1.5 dB NF, 30 mW, 1.2 GHz to 1.4 GHz, Low Noise High Gain Amplifier SMA

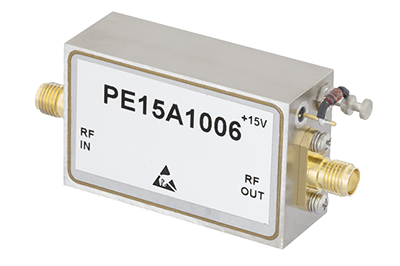

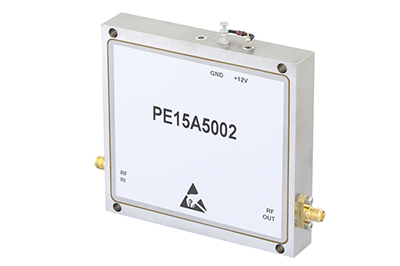

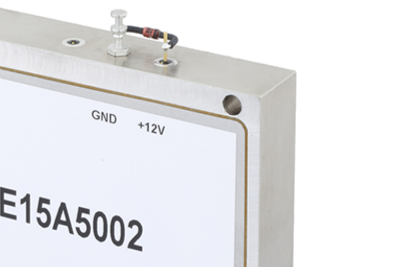

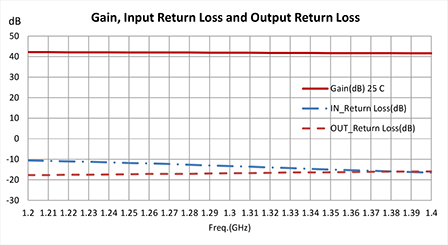

46 dB Gain, 600 mW, 1.2 GHz to 1.4 GHz, Medium Power High Gain Amplifier, 10 dB NF, SMA

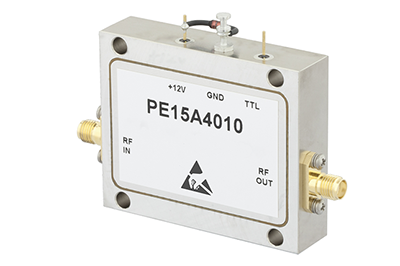

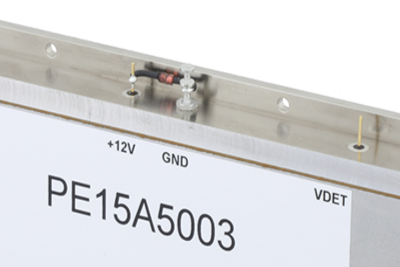

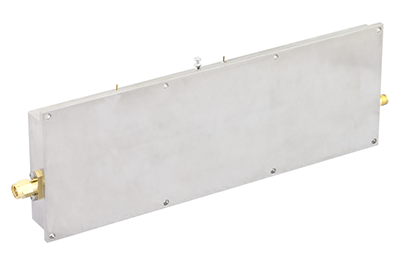

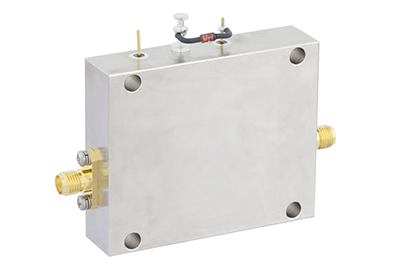

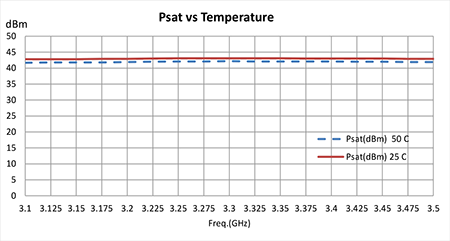

40 dB Gain, 10 Watt, 1.2 GHz to 1.4 GHz, High Power High Gain Amplifier, SMA

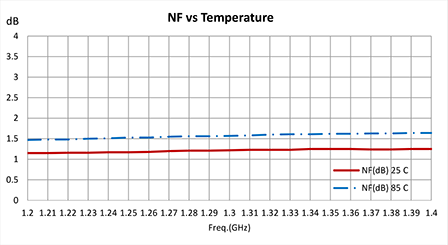

3.1 GHz – 3.5 GHz (S Band) High Gain Amplifiers

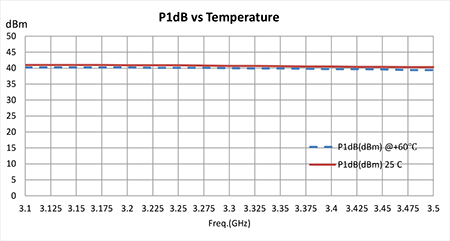

40 dB Gain, 1.1 dB NF, 30 mW, 3.1 GHz to 3.5 GHz, Low Noise High Gain Amplifier SMA

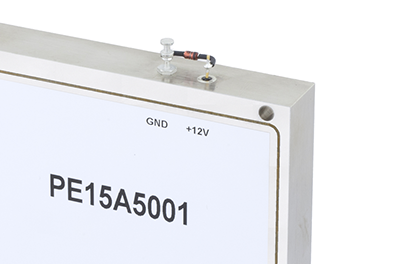

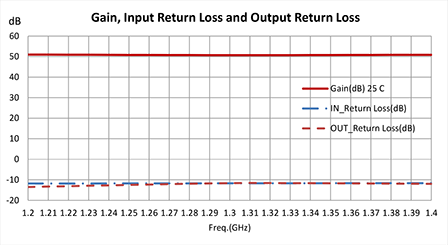

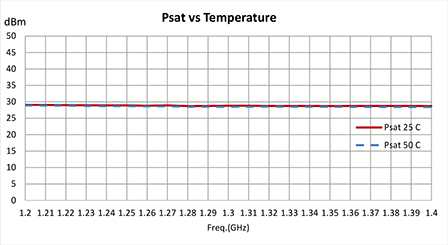

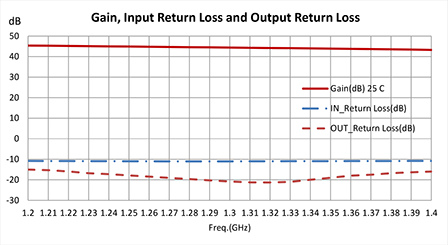

45 dB Gain, 10 Watt, 3.1 GHz to 3.5 GHz, High Power High Gain Amplifier, 4 dB NF, SMA

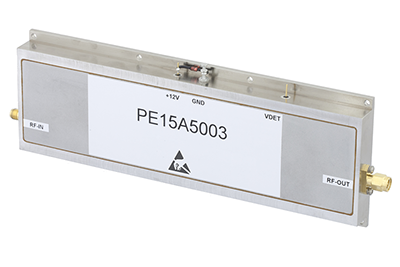

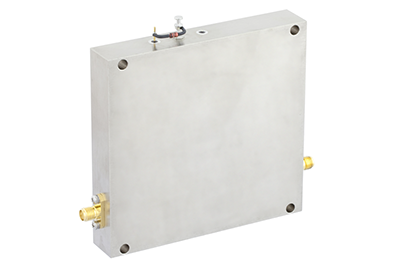

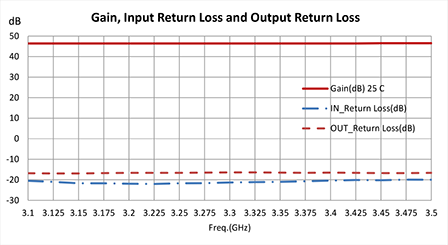

47 dB Gain, 20 Watt, 3.1 GHz to 3.5 GHz, High Power High Gain Amplifier, 3.5 dB NF, SMA

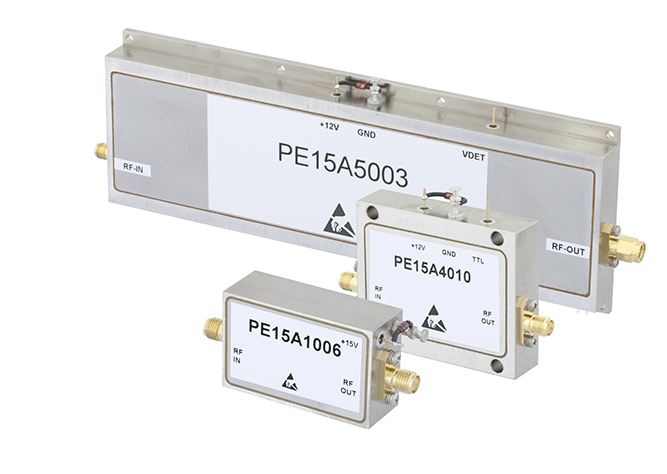

L and S Band High Gain Amplifiers Covering 1.2 - 1.4 GHz and 3.1 – 3.5 GHz
Our L and S band high gain amplifiers are in-stock and available to ship today!
Our new L and S band high gain amplifiers covering 1.2 - 1.4 GHz and 3.1 – 3.5 GHz are specifically used for commercial and military radar applications as well as observation satellites and communications systems. Pasternack’s new high gain amplifier modules are optimized for 1.2 – 1.4 GHz and 3.1 – 3.5 GHz radar applications, packaged in hermetically-sealed metal enclosures and exhibit outstanding performance in high gain, gain flatness, high output power and low noise. Our RF amplifiers utilize a hybrid microwave integrated circuit design and advanced GaAs pHEMT technology to produce an unconditionally stable module. They are also designed with built-in voltage regulation, bias sequencing, and reverse bias protection for added reliability and over-voltage protection is installed externally for easy repair.
These RF amplifiers are EAR99 (No Export License Required).
Pasternack RF Amplifier Part # |
|||||||
Parameter (Typical) |
Units |
||||||
Amplifier Frequency Range |
GHz |
1.2 -1.4 |
1.2 -1.4 |
1.2 -1.4 |
3.1 - 3.5 |
3.1 - 3.5 |
3.1 - 3.5 |
Small Signal Gain |
dB |
40 |
46 |
40 |
40 |
45 |
47 |
Gain Flatness |
dB |
+/-0.75 |
+/-0.5 |
+/-0.3 |
+/-0.3 |
+/-1.5 |
+/-1.5 |
P1dB Output Power |
dBm |
15 |
40 |
15 |
43 |
||
Psat |
dBm |
28 |
40 |
|
|||
NF |
dB |
1.5 |
2 |
1.1 |
4 |
3.5 |
|
Input VSWR |
|
2:01 |
2:01 |
2:01 |
1.5:1 |
1.7:1 |
1.7:1 |
Output VSWR |
|
2:01 |
2:01 |
2:01 |
1.5:1 |
1.7:1 |
1.7:1 |
DC Supply Voltage |
Volts |
13.2 |
12 |
12 |
15 |
15 |
12 |
Current Supply |
mA |
250 |
400 |
4,000 |
170 |
5,000 |
9,000 |
For a complete list of Pasternack's products please click here
