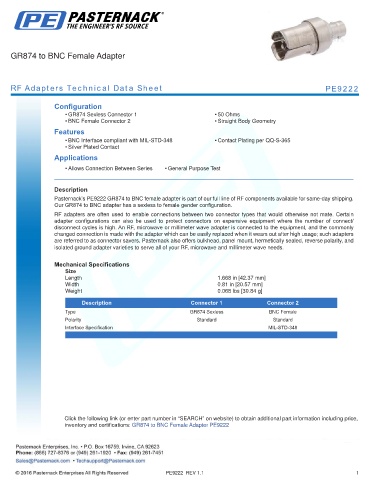

GR874 to BNC Female Adapter

RF Adapters Technical Data Sheet PE9222

Configuration
• GR874 Sexless Connector 1 • 50 Ohms
• BNC Female Connector 2 • Straight Body Geometry
Features
• BNC Interface compliant with MIL-STD-348 • Contact Plating per QQ-S-365
• Silver Plated Contact
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9222 GR874 to BNC female adapter is part of our full line of RF components available for same-day shipping.
Our GR874 to BNC adapter has a sexless to female gender configuration.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.668 in [42.37 mm]
Width 0.81 in [20.57 mm]
Weight 0.068 lbs [30.84 g]
.
Description Connector 1 Connector 2
Type GR874 Sexless BNC Female
Polarity Standard Standard
Interface Specification MIL-STD-348
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: GR874 to BNC Female Adapter PE9222
