GR874 Sexless to C Female Adapter

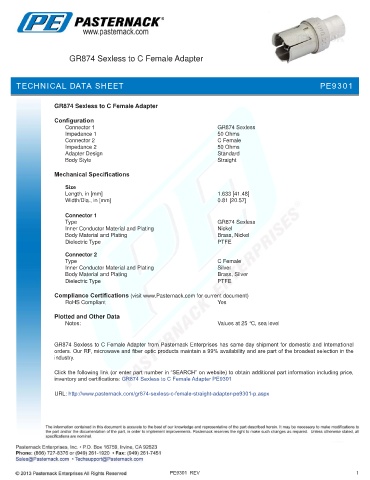

TECHNICAL DATA SHEET PE9301

GR874 Sexless to C Female Adapter

Configuration
Connector 1 GR874 Sexless
Impedance 1 50 Ohms
Connector 2 C Female
Impedance 2 50 Ohms
Adapter Design Standard
Body Style Straight

Mechanical Specifications

Size
Length, in [mm] 1.633 [41.48]
Width/Dia., in [mm] 0.81 [20.57]
.
Connector 1
Type GR874 Sexless
Inner Conductor Material and Plating Nickel
Body Material and Plating Brass, Nickel
Dielectric Type PTFE

Connector 2
Type C Female
Inner Conductor Material and Plating Silver
Body Material and Plating Brass, Silver
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes
Plotted and Other Data
Notes: Values at 25 °C, sea level

GR874 Sexless to C Female Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest selection in the
industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: GR874 Sexless to C Female Adapter PE9301

URL: http://www.pasternack.com/gr874-sexless-c-female-straight-adapter-pe9301-p.aspx

PE9301 REV 1
