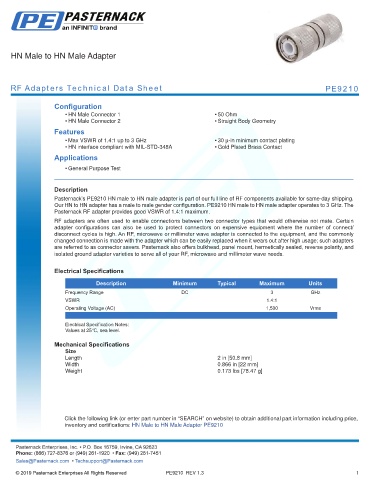

HN Male to HN Male Adapter

RF Adapters Technical Data Sheet PE9210

Configuration
• HN Male Connector 1 • 50 Ohm
• HN Male Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.4:1 up to 3 GHz • 30 µ-in minimum contact plating
• HN interface compliant with MIL-STD-348A • Gold Plated Brass Contact
Applications
• General Purpose Test
.
Description
Pasternack’s PE9210 HN male to HN male adapter is part of our full line of RF components available for same-day shipping.
Our HN to HN adapter has a male to male gender configuration. PE9210 HN male to HN male adapter operates to 3 GHz. The
Pasternack RF adapter provides good VSWR of 1.4:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.4:1
Operating Voltage (AC) 1,500 Vrms
. .
Electrical Specification Notes:
Values at 25°C, sea level.
Mechanical Specifications
Size
Length 2 in [50.8 mm]
Width 0.866 in [22 mm]
Weight 0.173 lbs [78.47 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: HN Male to HN Male Adapter PE9210
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE9210 REV 1.3 1
