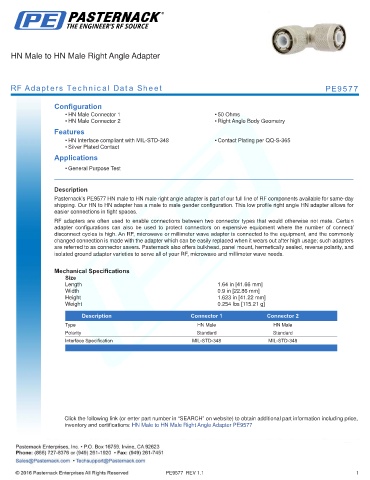

HN Male to HN Male Right Angle Adapter

RF Adapters Technical Data Sheet PE9577

Configuration
• HN Male Connector 1 • 50 Ohms
• HN Male Connector 2 • Right Angle Body Geometry
Features
• HN Interface compliant with MIL-STD-348 • Contact Plating per QQ-S-365
• Silver Plated Contact
Applications
• General Purpose Test
.
Description
Pasternack’s PE9577 HN male to HN male right angle adapter is part of our full line of RF components available for same-day
shipping. Our HN to HN adapter has a male to male gender configuration. This low profile right angle HN adapter allows for
easier connections in tight spaces.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.64 in [41.66 mm]
Width 0.9 in [22.86 mm]
Height 1.623 in [41.22 mm]
Weight 0.254 lbs [115.21 g]
.
Description Connector 1 Connector 2
Type HN Male HN Male
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: HN Male to HN Male Right Angle Adapter PE9577
