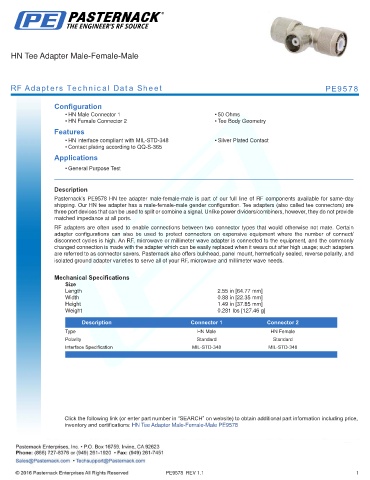

HN Tee Adapter Male-Female-Male

RF Adapters Technical Data Sheet PE9578

Configuration
• HN Male Connector 1 • 50 Ohms
• HN Female Connector 2 • Tee Body Geometry
Features
• HN interface compliant with MIL-STD-348 • Silver Plated Contact
• Contact plating according to QQ-S-365
Applications
• General Purpose Test
.
Description
Pasternack’s PE9578 HN tee adapter male-female-male is part of our full line of RF components available for same-day
shipping. Our HN tee adapter has a male-female-male gender configuration. Tee adapters (also called tee connectors) are
three port devices that can be used to split or combine a signal. Unlike power dividers/combiners, however, they do not provide
matched impedance at all ports.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 2.55 in [64.77 mm]
Width 0.88 in [22.35 mm]
Height 1.49 in [37.85 mm]
Weight 0.281 lbs [127.46 g]
.
Description Connector 1 Connector 2
Type HN Male HN Female
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: HN Tee Adapter Male-Female-Male PE9578

PE9578 REV 1.1 1
