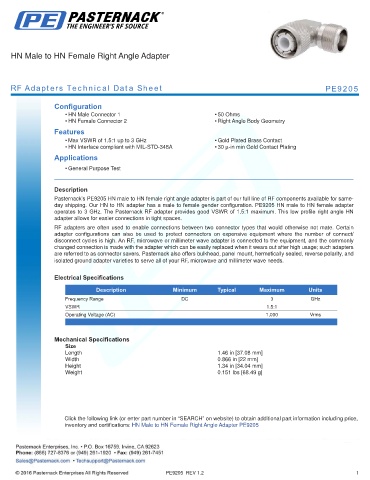

HN Male to HN Female Right Angle Adapter

RF Adapters Technical Data Sheet PE9205

Configuration
• HN Male Connector 1 • 50 Ohms
• HN Female Connector 2 • Right Angle Body Geometry
Features
• Max VSWR of 1.5:1 up to 3 GHz • Gold Plated Brass Contact
• HN Interface compliant with MIL-STD-348A • 30 µ-in min Gold Contact Plating
Applications
• General Purpose Test
.
Description
Pasternack’s PE9205 HN male to HN female right angle adapter is part of our full line of RF components available for same-
day shipping. Our HN to HN adapter has a male to female gender configuration. PE9205 HN male to HN female adapter
operates to 3 GHz. The Pasternack RF adapter provides good VSWR of 1.5:1 maximum. This low profile right angle HN
adapter allows for easier connections in tight spaces.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.5:1
Operating Voltage (AC) 1,000 Vrms
. .

Mechanical Specifications
Size
Length 1.46 in [37.08 mm]
Width 0.866 in [22 mm]
Height 1.34 in [34.04 mm]
Weight 0.151 lbs [68.49 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: HN Male to HN Female Right Angle Adapter PE9205

PE9205 REV 1.2 1
