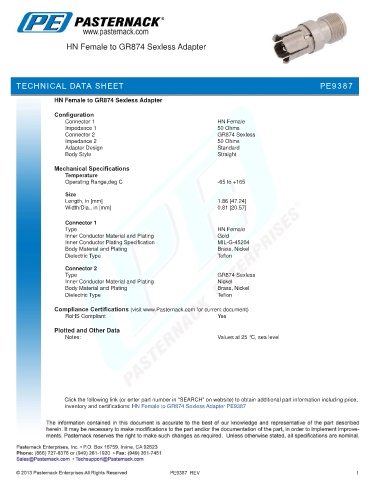

HN Female to GR874 Sexless Adapter
TECHNICAL DATA SHEET PE9387
HN Female to GR874 Sexless Adapter
Configuration
Connector 1 HN Female
Impedance 1 50 Ohms
Connector 2 GR874 Sexless
Impedance 2 50 Ohms
Adapter Design Standard
Body Style Straight
Mechanical Specifications
Temperature
Operating Range,deg C -65 to +165
Size
Length, in [mm] 1.86 [47.24]
Width/Dia., in [mm] 0.81 [20.57]
.
Connector 1
Type HN Female
Inner Conductor Material and Plating Gold
Inner Conductor Plating Specification MIL-G-45204
Body Material and Plating Brass, Nickel
Dielectric Type Teflon
Connector 2
Type GR874 Sexless
Inner Conductor Material and Plating Nickel
Body Material and Plating Brass, Nickel
Dielectric Type Teflon
Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes
Plotted and Other Data
Notes: Values at 25 °C, sea level
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: HN Female to GR874 Sexless Adapter PE9387
PE9387 REV 1
