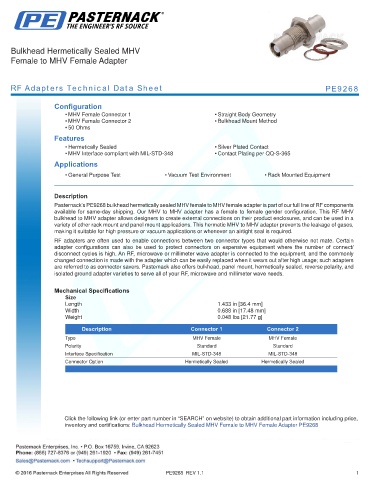

Bulkhead Hermetically Sealed MHV
Female to MHV Female Adapter

RF Adapters Technical Data Sheet PE9268

Configuration
• MHV Female Connector 1 • Straight Body Geometry
• MHV Female Connector 2 • Bulkhead Mount Method
• 50 Ohms
Features
• Hermetically Sealed • Silver Plated Contact
• MHV Interface compliant with MIL-STD-348 • Contact Plating per QQ-S-365
Applications
• General Purpose Test • Vacuum Test Environment • Rack Mounted Equipment

.
Description
Pasternack’s PE9268 bulkhead hermetically sealed MHV female to MHV female adapter is part of our full line of RF components
available for same-day shipping. Our MHV to MHV adapter has a female to female gender configuration. This RF MHV
bulkhead to MHV adapter allows designers to create external connections on their product enclosures, and can be used in a
variety of other rack mount and panel mount applications. This hermetic MHV to MHV adapter prevents the leakage of gases,
making it suitable for high pressure or vacuum applications or whenever an airtight seal is required.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.433 in [36.4 mm]
Width 0.688 in [17.48 mm]
Weight 0.048 lbs [21.77 g]
.
Description Connector 1 Connector 2
Type MHV Female MHV Female
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
Connector Option Hermetically Sealed Hermetically Sealed
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bulkhead Hermetically Sealed MHV Female to MHV Female Adapter PE9268

PE9268 REV 1.1 1
