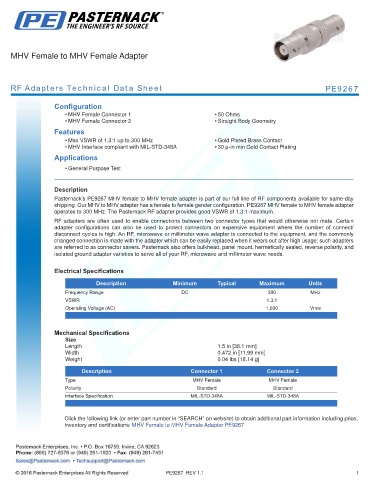

MHV Female to MHV Female Adapter

RF Adapters Technical Data Sheet PE9267

Configuration
• MHV Female Connector 1 • 50 Ohms
• MHV Female Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.3:1 up to 300 MHz • Gold Plated Brass Contact
• MHV Interface compliant with MIL-STD-348A • 30 µ-in min Gold Contact Plating
Applications
• General Purpose Test
.
Description
Pasternack’s PE9267 MHV female to MHV female adapter is part of our full line of RF components available for same-day
shipping. Our MHV to MHV adapter has a female to female gender configuration. PE9267 MHV female to MHV female adapter
operates to 300 MHz. The Pasternack RF adapter provides good VSWR of 1.3:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 300 MHz
VSWR 1.3:1
Operating Voltage (AC) 1,600 Vrms
. .

Mechanical Specifications
Size
Length 1.5 in [38.1 mm]
Width 0.472 in [11.99 mm]
Weight 0.04 lbs [18.14 g]
.
Description Connector 1 Connector 2
Type MHV Female MHV Female
Polarity Standard Standard
Interface Specification MIL-STD-348A MIL-STD-348A
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MHV Female to MHV Female Adapter PE9267

PE9267 REV 1.1 1
