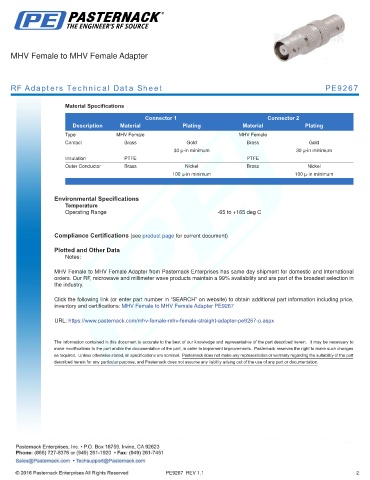

MHV Female to MHV Female Adapter

RF Adapters Technical Data Sheet PE9267

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type MHV Female MHV Female
Contact Brass Gold Brass Gold
30 µ-in minimum 30 µ-in minimum
Insulation PTFE PTFE
Outer Conductor Brass Nickel Brass Nickel
100 µ-in minimum 100 µ-in minimum
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

MHV Female to MHV Female Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in
the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MHV Female to MHV Female Adapter PE9267

URL: https://www.pasternack.com/mhv-female-mhv-female-straight-adapter-pe9267-p.aspx

PE9267 REV 1.1 2
