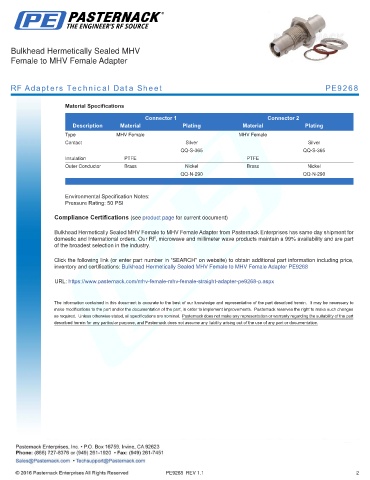

Bulkhead Hermetically Sealed MHV
Female to MHV Female Adapter

RF Adapters Technical Data Sheet PE9268

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type MHV Female MHV Female
Contact Silver Silver
QQ-S-365 QQ-S-365
Insulation PTFE PTFE
Outer Conductor Brass Nickel Brass Nickel
QQ-N-290 QQ-N-290
. .

Environmental Specification Notes:
Pressure Rating: 50 PSI

Compliance Certifications (see product page for current document)

Bulkhead Hermetically Sealed MHV Female to MHV Female Adapter from Pasternack Enterprises has same day shipment for
domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part
of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bulkhead Hermetically Sealed MHV Female to MHV Female Adapter PE9268

URL: https://www.pasternack.com/mhv-female-mhv-female-straight-adapter-pe9268-p.aspx
