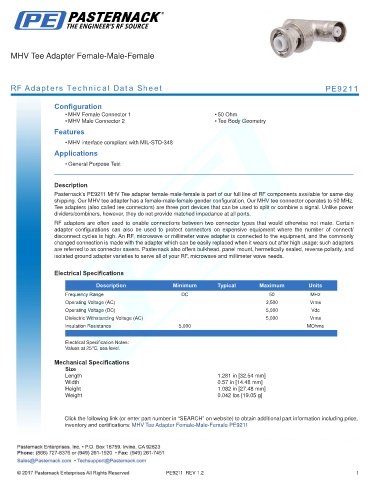

MHV Tee Adapter Female-Male-Female

RF Adapters Technical Data Sheet PE9211

Configuration
• MHV Female Connector 1 • 50 Ohm
• MHV Male Connector 2 • Tee Body Geometry
Features

• MHV interface compliant with MIL-STD-348
Applications
• General Purpose Test
.
Description
Pasternack’s PE9211 MHV Tee adapter female-male-female is part of our full line of RF components available for same-day
shipping. Our MHV tee adapter has a female-male-female gender configuration. Our MHV tee connector operates to 50 MHz.
Tee adapters (also called tee connectors) are three port devices that can be used to split or combine a signal. Unlike power
dividers/combiners, however, they do not provide matched impedance at all ports.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 50 MHz
Operating Voltage (AC) 3,500 Vrms
Operating Voltage (DC) 5,000 Vdc
Dielectric Withstanding Voltage (AC) 5,000 Vrms
Insulation Resistance 5,000 MOhms
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 1.281 in [32.54 mm]
Width 0.57 in [14.48 mm]
Height 1.082 in [27.48 mm]
Weight 0.042 lbs [19.05 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MHV Tee Adapter Female-Male-Female PE9211

PE9211 REV 1.2 1
