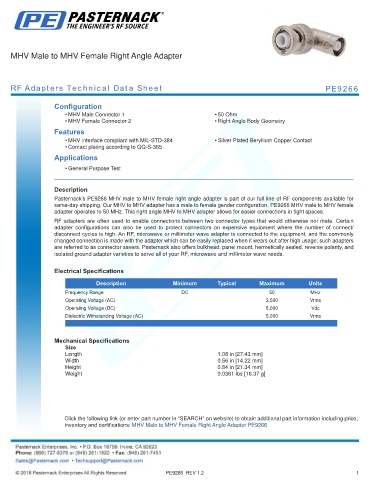

MHV Male to MHV Female Right Angle Adapter

RF Adapters Technical Data Sheet PE9266

Configuration
• MHV Male Connector 1 • 50 Ohm
• MHV Female Connector 2 • Right Angle Body Geometry
Features
• MHV interface compliant with MIL-STD-384 • Silver Plated Beryllium Copper Contact
• Contact plating according to QQ-S-365
Applications
• General Purpose Test
.
Description
Pasternack’s PE9266 MHV male to MHV female right angle adapter is part of our full line of RF components available for
same-day shipping. Our MHV to MHV adapter has a male to female gender configuration. PE9266 MHV male to MHV female
adapter operates to 50 MHz. This right angle MHV to MHV adapter allows for easier connections in tight spaces.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 50 MHz
Operating Voltage (AC) 3,500 Vrms
Operating Voltage (DC) 5,000 Vdc
Dielectric Withstanding Voltage (AC) 5,000 Vrms
. .

Mechanical Specifications
Size
Length 1.08 in [27.43 mm]
Width 0.56 in [14.22 mm]
Height 0.84 in [21.34 mm]
Weight 0.0361 lbs [16.37 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MHV Male to MHV Female Right Angle Adapter PE9266
