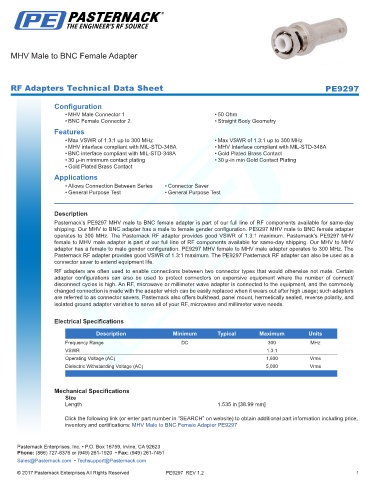

MHV Male to BNC Female Adapter

RF Adapters Technical Data Sheet PE9297

Configuration
• MHV Male Connector 1 • 50 Ohm
• BNC Female Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.3:1 up to 300 MHz • Max VSWR of 1.3:1 up to 300 MHz
• MHV interface compliant with MIL-STD-348A • MHV Interface compliant with MIL-STD-348A
• BNC interface compliant with MIL-STD-348A • Gold Plated Brass Contact
• 30 µ-in minimum contact plating • 30 µ-in min Gold Contact Plating
• Gold Plated Brass Contact
Applications
• Allows Connection Between Series • Connector Saver
• General Purpose Test • General Purpose Test
.
Description
Pasternack’s PE9297 MHV male to BNC female adapter is part of our full line of RF components available for same-day
shipping. Our MHV to BNC adapter has a male to female gender configuration. PE9297 MHV male to BNC female adapter
operates to 300 MHz. The Pasternack RF adapter provides good VSWR of 1.3:1 maximum. Pasternack’s PE9297 MHV
female to MHV male adapter is part of our full line of RF components available for same-day shipping. Our MHV to MHV
adapter has a female to male gender configuration. PE9297 MHV female to MHV male adapter operates to 300 MHz. The
Pasternack RF adapter provides good VSWR of 1.3:1 maximum. The PE9297 Pasternack RF adapter can also be used as a
connector saver to extend equipment life.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 300 MHz
VSWR 1.3:1
Operating Voltage (AC) 1,600 Vrms
Dielectric Withstanding Voltage (AC) 5,000 Vrms
. .

Mechanical Specifications
Size
Length 1.535 in [38.99 mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MHV Male to BNC Female Adapter PE9297
