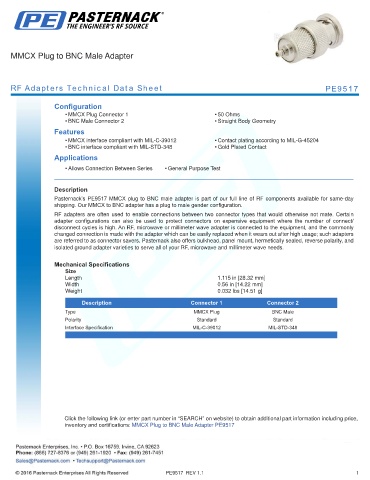

MMCX Plug to BNC Male Adapter

RF Adapters Technical Data Sheet PE9517

Configuration
• MMCX Plug Connector 1 • 50 Ohms
• BNC Male Connector 2 • Straight Body Geometry
Features
• MMCX interface compliant with MIL-C-39012 • Contact plating according to MIL-G-45204
• BNC interface compliant with MIL-STD-348 • Gold Plated Contact
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9517 MMCX plug to BNC male adapter is part of our full line of RF components available for same-day
shipping. Our MMCX to BNC adapter has a plug to male gender configuration.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.115 in [28.32 mm]
Width 0.56 in [14.22 mm]
Weight 0.032 lbs [14.51 g]
.
Description Connector 1 Connector 2
Type MMCX Plug BNC Male
Polarity Standard Standard
Interface Specification MIL-C-39012 MIL-STD-348
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MMCX Plug to BNC Male Adapter PE9517

PE9517 REV 1.1 1
