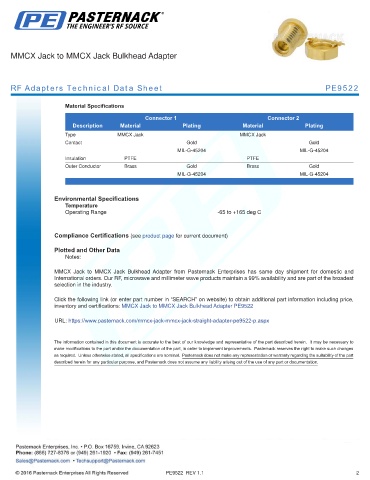

MMCX Jack to MMCX Jack Bulkhead Adapter

RF Adapters Technical Data Sheet PE9522

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type MMCX Jack MMCX Jack
Contact Gold Gold
MIL-G-45204 MIL-G-45204
Insulation PTFE PTFE
Outer Conductor Brass Gold Brass Gold
MIL-G-45204 MIL-G-45204
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

MMCX Jack to MMCX Jack Bulkhead Adapter from Pasternack Enterprises has same day shipment for domestic and
International orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest
selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MMCX Jack to MMCX Jack Bulkhead Adapter PE9522

URL: https://www.pasternack.com/mmcx-jack-mmcx-jack-straight-adapter-pe9522-p.aspx

PE9522 REV 1.1 2
