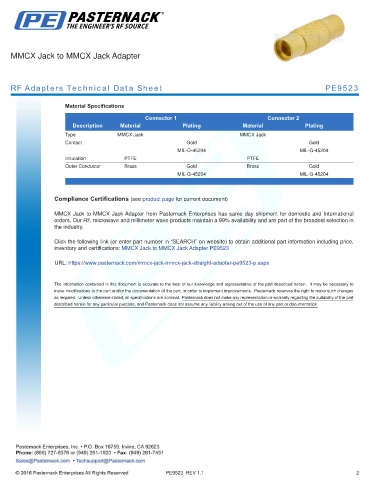

MMCX Jack to MMCX Jack Adapter

RF Adapters Technical Data Sheet PE9523

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type MMCX Jack MMCX Jack
Contact Gold Gold
MIL-G-45204 MIL-G-45204
Insulation PTFE PTFE
Outer Conductor Brass Gold Brass Gold
MIL-G-45204 MIL-G-45204
. .

Compliance Certifications (see product page for current document)

MMCX Jack to MMCX Jack Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in
the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MMCX Jack to MMCX Jack Adapter PE9523

URL: https://www.pasternack.com/mmcx-jack-mmcx-jack-straight-adapter-pe9523-p.aspx

PE9523 REV 1.1 2
