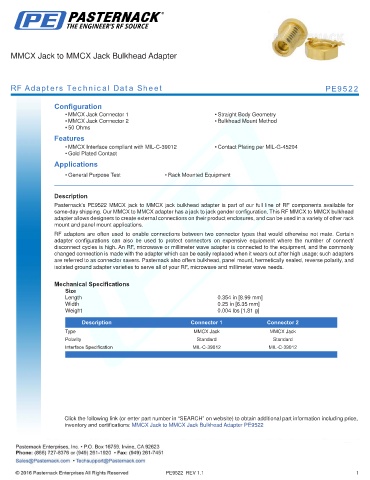

MMCX Jack to MMCX Jack Bulkhead Adapter

RF Adapters Technical Data Sheet PE9522

Configuration
• MMCX Jack Connector 1 • Straight Body Geometry
• MMCX Jack Connector 2 • Bulkhead Mount Method
• 50 Ohms
Features
• MMCX Interface compliant with MIL-C-39012 • Contact Plating per MIL-G-45204
• Gold Plated Contact
Applications
• General Purpose Test • Rack Mounted Equipment

.
Description
Pasternack’s PE9522 MMCX jack to MMCX jack bulkhead adapter is part of our full line of RF components available for
same-day shipping. Our MMCX to MMCX adapter has a jack to jack gender configuration. This RF MMCX to MMCX bulkhead
adapter allows designers to create external connections on their product enclosures, and can be used in a variety of other rack
mount and panel mount applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 0.354 in [8.99 mm]
Width 0.25 in [6.35 mm]
Weight 0.004 lbs [1.81 g]
.
Description Connector 1 Connector 2
Type MMCX Jack MMCX Jack
Polarity Standard Standard
Interface Specification MIL-C-39012 MIL-C-39012
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MMCX Jack to MMCX Jack Bulkhead Adapter PE9522

PE9522 REV 1.1 1
