MMCX Plug to MCX Plug Adapter

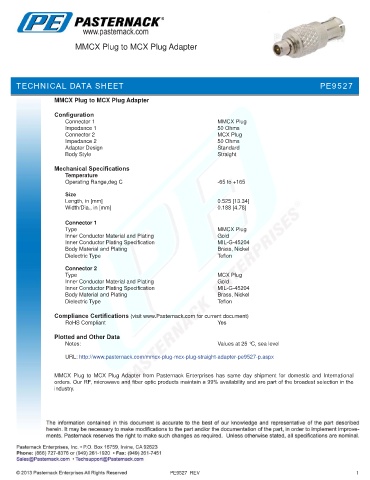

TECHNICAL DATA SHEET PE9527

MMCX Plug to MCX Plug Adapter

Configuration
Connector 1 MMCX Plug
Impedance 1 50 Ohms
Connector 2 MCX Plug
Impedance 2 50 Ohms
Adapter Design Standard
Body Style Straight

Mechanical Specifications
Temperature
Operating Range,deg C -65 to +165
Size
Length, in [mm] 0.525 [13.34]
Width/Dia., in [mm] 0.188 [4.78]
.
Connector 1
Type MMCX Plug
Inner Conductor Material and Plating Gold
Inner Conductor Plating Specification MIL-G-45204
Body Material and Plating Brass, Nickel
Dielectric Type Teflon
Connector 2
Type MCX Plug
Inner Conductor Material and Plating Gold
Inner Conductor Plating Specification MIL-G-45204
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

URL: http://www.pasternack.com/mmcx-plug-mcx-plug-straight-adapter-pe9527-p.aspx

MMCX Plug to MCX Plug Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest selection in the
industry.

PE9527 REV 1
