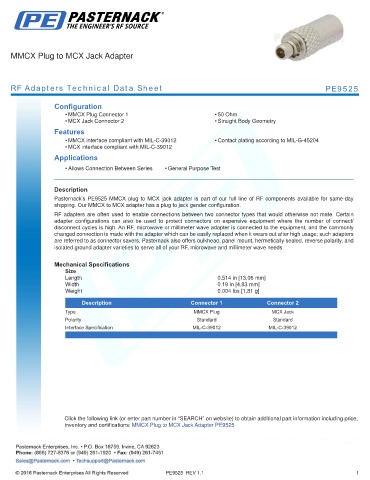

MMCX Plug to MCX Jack Adapter

RF Adapters Technical Data Sheet PE9525

Configuration
• MMCX Plug Connector 1 • 50 Ohm
• MCX Jack Connector 2 • Straight Body Geometry
Features
• MMCX interface compliant with MIL-C-39012 • Contact plating according to MIL-G-45204
• MCX interface compliant with MIL-C-39012
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9525 MMCX plug to MCX jack adapter is part of our full line of RF components available for same-day
shipping. Our MMCX to MCX adapter has a plug to jack gender configuration.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 0.514 in [13.06 mm]
Width 0.19 in [4.83 mm]
Weight 0.004 lbs [1.81 g]
.
Description Connector 1 Connector 2
Type MMCX Plug MCX Jack
Polarity Standard Standard
Interface Specification MIL-C-39012 MIL-C-39012
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MMCX Plug to MCX Jack Adapter PE9525
