N Male to SMC Jack Adapter

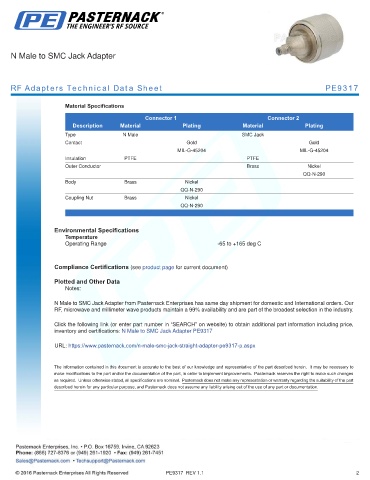

RF Adapters Technical Data Sheet PE9317

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type N Male SMC Jack
Contact Gold Gold
MIL-G-45204 MIL-G-45204
Insulation PTFE PTFE
Outer Conductor Brass Nickel
QQ-N-290
Body Brass Nickel
QQ-N-290
Coupling Nut Brass Nickel
QQ-N-290
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

N Male to SMC Jack Adapter from Pasternack Enterprises has same day shipment for domestic and International orders. Our
RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male to SMC Jack Adapter PE9317
URL: https://www.pasternack.com/n-male-smc-jack-straight-adapter-pe9317-p.aspx

PE9317 REV 1.1 2
