N Male to TNC Male Adapter

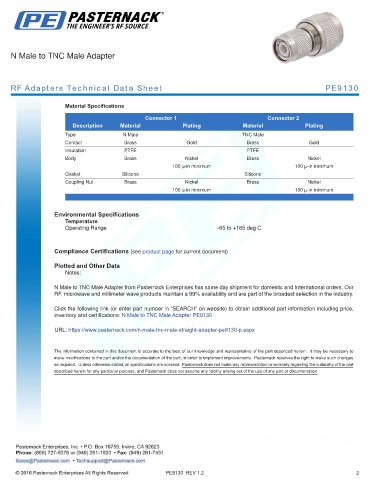

RF Adapters Technical Data Sheet PE9130

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type N Male TNC Male
Contact Brass Gold Brass Gold
Insulation PTFE PTFE
Body Brass Nickel Brass Nickel
100 µ-in minimum 100 µ-in minimum
Gasket Silicone Silicone
Coupling Nut Brass Nickel Brass Nickel
100 µ-in minimum 100 µ-in minimum
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

N Male to TNC Male Adapter from Pasternack Enterprises has same day shipment for domestic and International orders. Our
RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male to TNC Male Adapter PE9130

URL: https://www.pasternack.com/n-male-tnc-male-straight-adapter-pe9130-p.aspx

PE9130 REV 1.2 2
