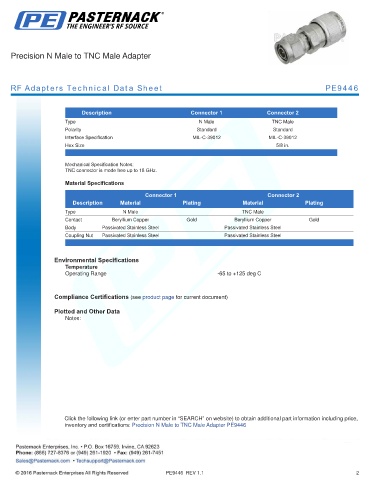

Precision N Male to TNC Male Adapter

RF Adapters Technical Data Sheet PE9446

.
Description Connector 1 Connector 2
Type N Male TNC Male
Polarity Standard Standard
Interface Specification MIL-C-39012 MIL-C-39012
Hex Size 5/8 in.
.
Mechanical Specification Notes:
TNC connector is mode free up to 18 GHz.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type N Male TNC Male
Contact Beryllium Copper Gold Beryllium Copper Gold
Body Passivated Stainless Steel Passivated Stainless Steel
Coupling Nut Passivated Stainless Steel Passivated Stainless Steel
. .

Environmental Specifications
Temperature
Operating Range -65 to +125 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision N Male to TNC Male Adapter PE9446

PE9446 REV 1.1 2
