N Male to TNC Female Adapter

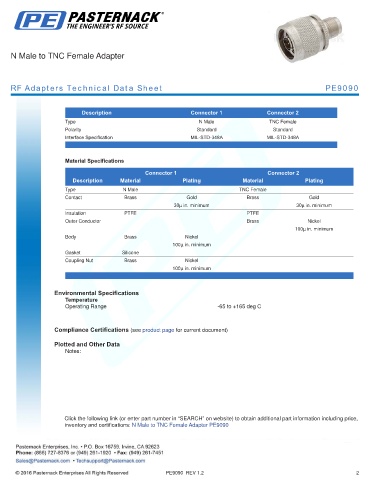

RF Adapters Technical Data Sheet PE9090

.
Description Connector 1 Connector 2
Type N Male TNC Female
Polarity Standard Standard
Interface Specification MIL-STD-348A MIL-STD-348A
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type N Male TNC Female
Contact Brass Gold Brass Gold
30µ in. minimum 30µ in. minimum
Insulation PTFE PTFE
Outer Conductor Brass Nickel
100µ in. minimum
Body Brass Nickel
100µ in. minimum
Gasket Silicone
Coupling Nut Brass Nickel
100µ in. minimum
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male to TNC Female Adapter PE9090
