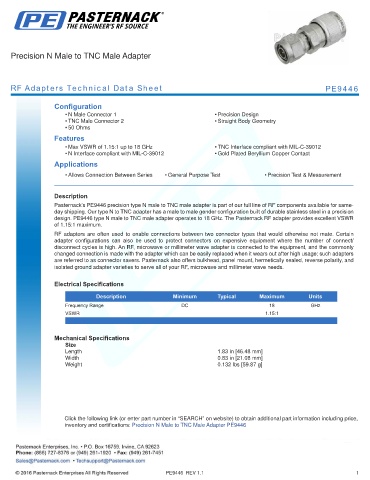

Precision N Male to TNC Male Adapter

RF Adapters Technical Data Sheet PE9446

Configuration
• N Male Connector 1 • Precision Design
• TNC Male Connector 2 • Straight Body Geometry
• 50 Ohms
Features
• Max VSWR of 1.15:1 up to 18 GHz • TNC Interface compliant with MIL-C-39012
• N Interface compliant with MIL-C-39012 • Gold Plated Beryllium Copper Contact
Applications
• Allows Connection Between Series • General Purpose Test • Precision Test & Measurement

.
Description
Pasternack’s PE9446 precision type N male to TNC male adapter is part of our full line of RF components available for same-
day shipping. Our type N to TNC adapter has a male to male gender configuration built of durable stainless steel in a precision
design. PE9446 type N male to TNC male adapter operates to 18 GHz. The Pasternack RF adapter provides excellent VSWR
of 1.15:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.15:1
. .

Mechanical Specifications
Size
Length 1.83 in [46.48 mm]
Width 0.83 in [21.08 mm]
Weight 0.132 lbs [59.87 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision N Male to TNC Male Adapter PE9446

PE9446 REV 1.1 1
