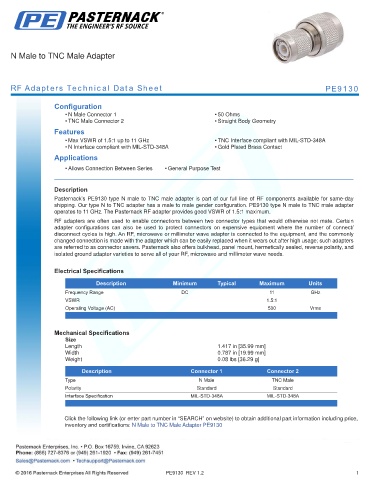

N Male to TNC Male Adapter

RF Adapters Technical Data Sheet PE9130

Configuration
• N Male Connector 1 • 50 Ohms
• TNC Male Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.5:1 up to 11 GHz • TNC Interface compliant with MIL-STD-348A
• N Interface compliant with MIL-STD-348A • Gold Plated Brass Contact
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9130 type N male to TNC male adapter is part of our full line of RF components available for same-day
shipping. Our type N to TNC adapter has a male to male gender configuration. PE9130 type N male to TNC male adapter
operates to 11 GHz. The Pasternack RF adapter provides good VSWR of 1.5:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
VSWR 1.5:1
Operating Voltage (AC) 500 Vrms
. .

Mechanical Specifications
Size
Length 1.417 in [35.99 mm]
Width 0.787 in [19.99 mm]
Weight 0.08 lbs [36.29 g]
.
Description Connector 1 Connector 2
Type N Male TNC Male
Polarity Standard Standard
Interface Specification MIL-STD-348A MIL-STD-348A
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male to TNC Male Adapter PE9130
