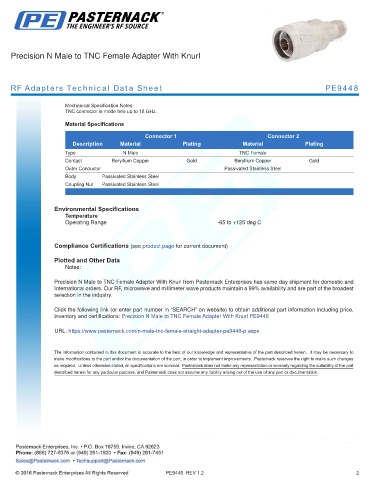

Precision N Male to TNC Female Adapter With Knurl

RF Adapters Technical Data Sheet PE9448

Mechanical Specification Notes:
TNC connector is mode free up to 18 GHz.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type N Male TNC Female
Contact Beryllium Copper Gold Beryllium Copper Gold
Outer Conductor Passivated Stainless Steel
Body Passivated Stainless Steel
Coupling Nut Passivated Stainless Steel
. .

Environmental Specifications
Temperature
Operating Range -65 to +125 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Precision N Male to TNC Female Adapter With Knurl from Pasternack Enterprises has same day shipment for domestic and
International orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest
selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision N Male to TNC Female Adapter With Knurl PE9448

URL: https://www.pasternack.com/n-male-tnc-female-straight-adapter-pe9448-p.aspx

PE9448 REV 1.2 2
