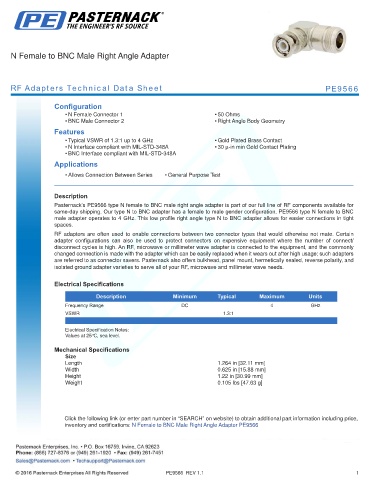

N Female to BNC Male Right Angle Adapter
RF Adapters Technical Data Sheet PE9566
Configuration
• N Female Connector 1 • 50 Ohms
• BNC Male Connector 2 • Right Angle Body Geometry
Features
• Typical VSWR of 1.3:1 up to 4 GHz • Gold Plated Brass Contact
• N Interface compliant with MIL-STD-348A • 30 µ-in min Gold Contact Plating
• BNC Interface compliant with MIL-STD-348A
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9566 type N female to BNC male right angle adapter is part of our full line of RF components available for
same-day shipping. Our type N to BNC adapter has a female to male gender configuration. PE9566 type N female to BNC
male adapter operates to 4 GHz. This low profile right angle type N to BNC adapter allows for easier connections in tight
spaces.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
VSWR 1.3:1
. .
Electrical Specification Notes:
Values at 25°C, sea level.
Mechanical Specifications
Size
Length 1.264 in [32.11 mm]
Width 0.625 in [15.88 mm]
Height 1.22 in [30.99 mm]
Weight 0.105 lbs [47.63 g]
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female to BNC Male Right Angle Adapter PE9566
PE9566 REV 1.1 1
