4 Hole Flange N Female to BNC Male Adapter

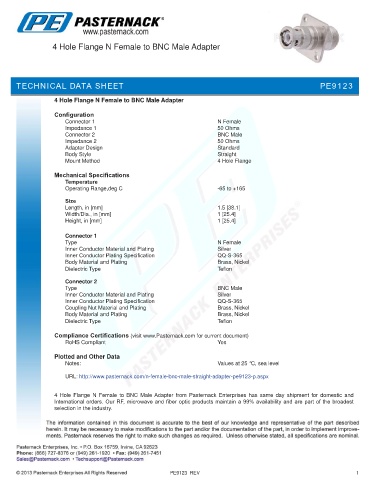

TECHNICAL DATA SHEET PE9123

4 Hole Flange N Female to BNC Male Adapter

Configuration
Connector 1 N Female
Impedance 1 50 Ohms
Connector 2 BNC Male
Impedance 2 50 Ohms
Adapter Design Standard
Body Style Straight
Mount Method 4 Hole Flange

Mechanical Specifications
Temperature
Operating Range,deg C -65 to +165

Size
Length, in [mm] 1.5 [38.1]
Width/Dia., in [mm] 1 [25.4]
Height, in [mm] 1 [25.4]
.
Connector 1
Type N Female
Inner Conductor Material and Plating Silver
Inner Conductor Plating Specification QQ-S-365
Body Material and Plating Brass, Nickel
Dielectric Type Teflon
Connector 2
Type BNC Male
Inner Conductor Material and Plating Silver
Inner Conductor Plating Specification QQ-S-365
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type Teflon
Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

URL: http://www.pasternack.com/n-female-bnc-male-straight-adapter-pe9123-p.aspx

4 Hole Flange N Female to BNC Male Adapter from Pasternack Enterprises has same day shipment for domestic and
International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest
selection in the industry.

PE9123 REV 1
