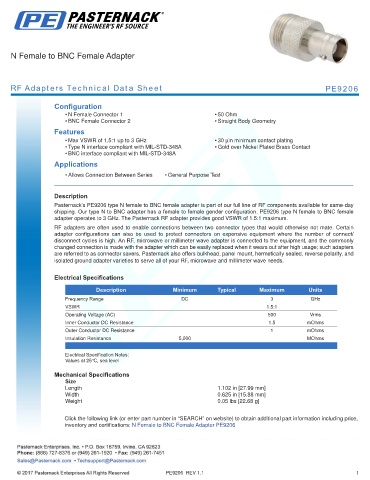

N Female to BNC Female Adapter

RF Adapters Technical Data Sheet PE9206

Configuration
• N Female Connector 1 • 50 Ohm
• BNC Female Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.5:1 up to 3 GHz • 30 µin minimum contact plating
• Type N interface compliant with MIL-STD-348A • Gold over Nickel Plated Brass Contact
• BNC interface compliant with MIL-STD-348A
Applications
• Allows Connection Between Series • General Purpose Test

.
Description
Pasternack’s PE9206 type N female to BNC female adapter is part of our full line of RF components available for same-day
shipping. Our type N to BNC adapter has a female to female gender configuration. PE9206 type N female to BNC female
adapter operates to 3 GHz. The Pasternack RF adapter provides good VSWR of 1.5:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.5:1
Operating Voltage (AC) 500 Vrms
Inner Conductor DC Resistance 1.5 mOhms
Outer Conductor DC Resistance 1 mOhms
Insulation Resistance 5,000 MOhms
. .
Electrical Specification Notes:
Values at 25°C, sea level
Mechanical Specifications
Size
Length 1.102 in [27.99 mm]
Width 0.625 in [15.88 mm]
Weight 0.05 lbs [22.68 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female to BNC Female Adapter PE9206

PE9206 REV 1.1 1
