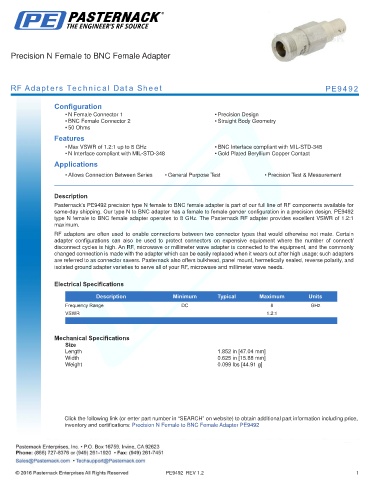

Precision N Female to BNC Female Adapter

RF Adapters Technical Data Sheet PE9492

Configuration
• N Female Connector 1 • Precision Design
• BNC Female Connector 2 • Straight Body Geometry
• 50 Ohms
Features
• Max VSWR of 1.2:1 up to 8 GHz • BNC Interface compliant with MIL-STD-348
• N Interface compliant with MIL-STD-348 • Gold Plated Beryllium Copper Contact
Applications
• Allows Connection Between Series • General Purpose Test • Precision Test & Measurement

.
Description
Pasternack’s PE9492 precision type N female to BNC female adapter is part of our full line of RF components available for
same-day shipping. Our type N to BNC adapter has a female to female gender configuration in a precision design. PE9492
type N female to BNC female adapter operates to 8 GHz. The Pasternack RF adapter provides excellent VSWR of 1.2:1
maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 8 GHz
VSWR 1.2:1
. .

Mechanical Specifications
Size
Length 1.852 in [47.04 mm]
Width 0.625 in [15.88 mm]
Weight 0.099 lbs [44.91 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision N Female to BNC Female Adapter PE9492

PE9492 REV 1.2 1
