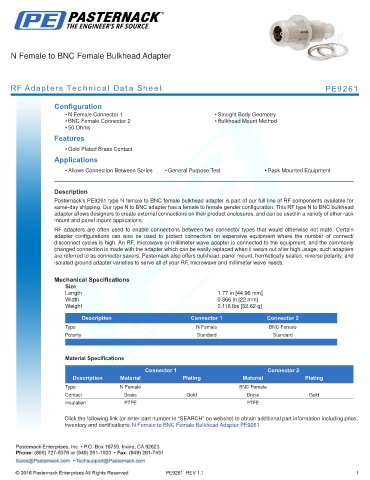

N Female to BNC Female Bulkhead Adapter

RF Adapters Technical Data Sheet PE9261

Configuration
• N Female Connector 1 • Straight Body Geometry
• BNC Female Connector 2 • Bulkhead Mount Method
• 50 Ohms
Features
• Gold Plated Brass Contact
Applications
• Allows Connection Between Series • General Purpose Test • Rack Mounted Equipment

.
Description
Pasternack’s PE9261 type N female to BNC female bulkhead adapter is part of our full line of RF components available for
same-day shipping. Our type N to BNC adapter has a female to female gender configuration. This RF type N to BNC bulkhead
adapter allows designers to create external connections on their product enclosures, and can be used in a variety of other rack
mount and panel mount applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.77 in [44.96 mm]
Width 0.866 in [22 mm]
Weight 0.116 lbs [52.62 g]
.
Description Connector 1 Connector 2
Type N Female BNC Female
Polarity Standard Standard
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type N Female BNC Female
Contact Brass Gold Brass Gold
Insulation PTFE PTFE

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female to BNC Female Bulkhead Adapter PE9261
