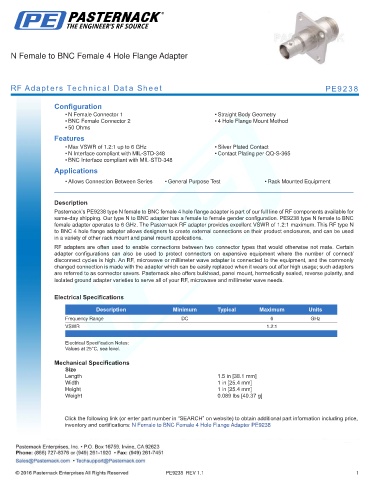

N Female to BNC Female 4 Hole Flange Adapter

RF Adapters Technical Data Sheet PE9238

Configuration
• N Female Connector 1 • Straight Body Geometry
• BNC Female Connector 2 • 4 Hole Flange Mount Method
• 50 Ohms
Features
• Max VSWR of 1.2:1 up to 6 GHz • Silver Plated Contact
• N Interface compliant with MIL-STD-348 • Contact Plating per QQ-S-365
• BNC Interface compliant with MIL-STD-348
Applications

• Allows Connection Between Series • General Purpose Test • Rack Mounted Equipment
.
Description
Pasternack’s PE9238 type N female to BNC female 4 hole flange adapter is part of our full line of RF components available for
same-day shipping. Our type N to BNC adapter has a female to female gender configuration. PE9238 type N female to BNC
female adapter operates to 6 GHz. The Pasternack RF adapter provides excellent VSWR of 1.2:1 maximum. This RF type N
to BNC 4 hole flange adapter allows designers to create external connections on their product enclosures, and can be used
in a variety of other rack mount and panel mount applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.2:1
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 1.5 in [38.1 mm]
Width 1 in [25.4 mm]
Height 1 in [25.4 mm]
Weight 0.089 lbs [40.37 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female to BNC Female 4 Hole Flange Adapter PE9238

PE9238 REV 1.1 1
