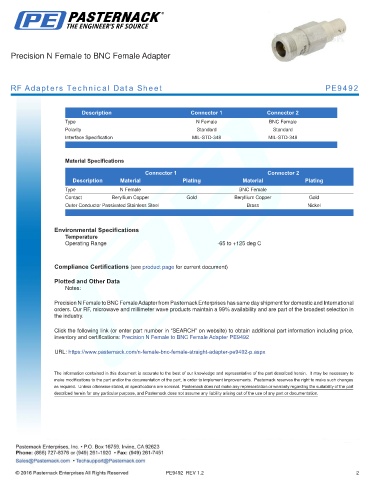

Precision N Female to BNC Female Adapter

RF Adapters Technical Data Sheet PE9492

.
Description Connector 1 Connector 2
Type N Female BNC Female
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type N Female BNC Female
Contact Beryllium Copper Gold Beryllium Copper Gold
Outer Conductor Passivated Stainless Steel Brass Nickel
. .

Environmental Specifications
Temperature
Operating Range -65 to +125 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Precision N Female to BNC Female Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in
the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision N Female to BNC Female Adapter PE9492

URL: https://www.pasternack.com/n-female-bnc-female-straight-adapter-pe9492-p.aspx

PE9492 REV 1.2 2
