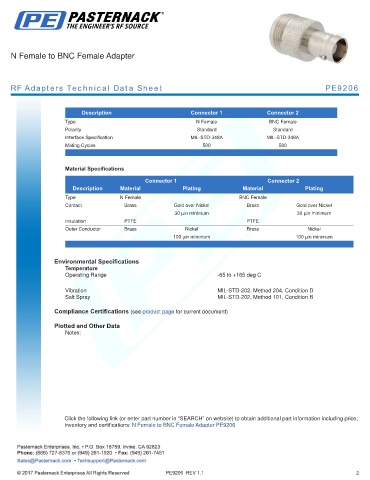

N Female to BNC Female Adapter

RF Adapters Technical Data Sheet PE9206

.
Description Connector 1 Connector 2
Type N Female BNC Female
Polarity Standard Standard
Interface Specification MIL-STD-348A MIL-STD-348A
Mating Cycles 500 500
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type N Female BNC Female
Contact Brass Gold over Nickel Brass Gold over Nickel
30 µin minimum 30 µin minimum
Insulation PTFE PTFE
Outer Conductor Brass Nickel Brass Nickel
100 µin minimum 100 µin minimum
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.
Vibration MIL-STD-202, Method 204, Condition D
Salt Spray MIL-STD-202, Method 101, Condition B

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female to BNC Female Adapter PE9206
