N Female to BNC Male Right Angle Adapter

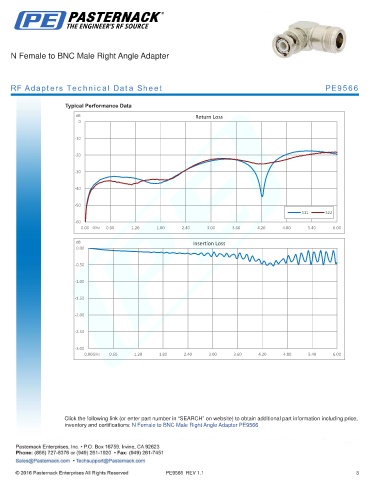

RF Adapters Technical Data Sheet PE9566
Typical Performance Data
dB Return Loss
0
-10
-20
-30
-40
-50
S11 S22
-60
0.00 GHz 0.60 1.20 1.80 2.40 3.00 3.60 4.20 4.80 5.40 6.00
dB Insertion Loss
0.00
-0.50
-1.00
-1.50
-2.00
-2.50
-3.00
0.00GHz 0.60 1.20 1.80 2.40 3.00 3.60 4.20 4.80 5.40 6.00
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female to BNC Male Right Angle Adapter PE9566
