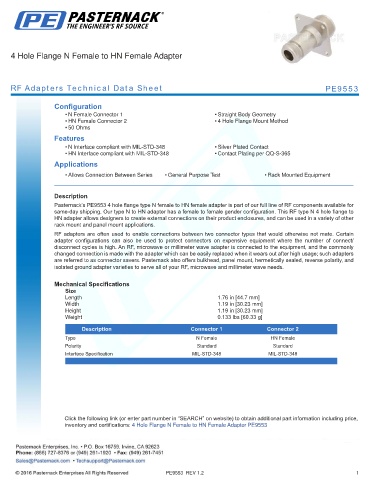

4 Hole Flange N Female to HN Female Adapter

RF Adapters Technical Data Sheet PE9553

Configuration
• N Female Connector 1 • Straight Body Geometry
• HN Female Connector 2 • 4 Hole Flange Mount Method
• 50 Ohms
Features
• N Interface compliant with MIL-STD-348 • Silver Plated Contact
• HN Interface compliant with MIL-STD-348 • Contact Plating per QQ-S-365
Applications
• Allows Connection Between Series • General Purpose Test • Rack Mounted Equipment

.
Description
Pasternack’s PE9553 4 hole flange type N female to HN female adapter is part of our full line of RF components available for
same-day shipping. Our type N to HN adapter has a female to female gender configuration. This RF type N 4 hole flange to
HN adapter allows designers to create external connections on their product enclosures, and can be used in a variety of other
rack mount and panel mount applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.76 in [44.7 mm]
Width 1.19 in [30.23 mm]
Height 1.19 in [30.23 mm]
Weight 0.133 lbs [60.33 g]
.
Description Connector 1 Connector 2
Type N Female HN Female
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 4 Hole Flange N Female to HN Female Adapter PE9553

PE9553 REV 1.2 1
