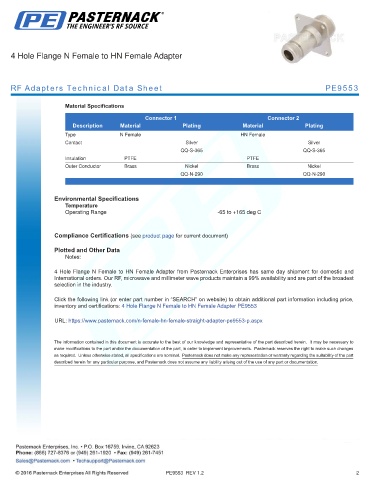

4 Hole Flange N Female to HN Female Adapter

RF Adapters Technical Data Sheet PE9553

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type N Female HN Female
Contact Silver Silver
QQ-S-365 QQ-S-365
Insulation PTFE PTFE
Outer Conductor Brass Nickel Brass Nickel
QQ-N-290 QQ-N-290
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

4 Hole Flange N Female to HN Female Adapter from Pasternack Enterprises has same day shipment for domestic and
International orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest
selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 4 Hole Flange N Female to HN Female Adapter PE9553

URL: https://www.pasternack.com/n-female-hn-female-straight-adapter-pe9553-p.aspx

PE9553 REV 1.2 2
