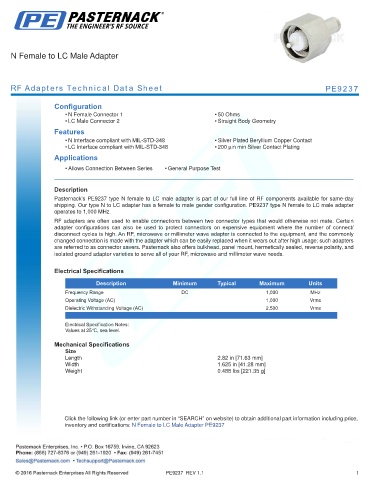

N Female to LC Male Adapter

RF Adapters Technical Data Sheet PE9237

Configuration
• N Female Connector 1 • 50 Ohms
• LC Male Connector 2 • Straight Body Geometry
Features
• N Interface compliant with MIL-STD-348 • Silver Plated Beryllium Copper Contact
• LC Interface compliant with MIL-STD-348 • 200 µin min Silver Contact Plating
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9237 type N female to LC male adapter is part of our full line of RF components available for same-day
shipping. Our type N to LC adapter has a female to male gender configuration. PE9237 type N female to LC male adapter
operates to 1,000 MHz.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
Operating Voltage (AC) 1,000 Vrms
Dielectric Withstanding Voltage (AC) 2,500 Vrms
. .
Electrical Specification Notes:
Values at 25°C, sea level.
Mechanical Specifications
Size
Length 2.82 in [71.63 mm]
Width 1.625 in [41.28 mm]
Weight 0.488 lbs [221.35 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female to LC Male Adapter PE9237

PE9237 REV 1.1 1
