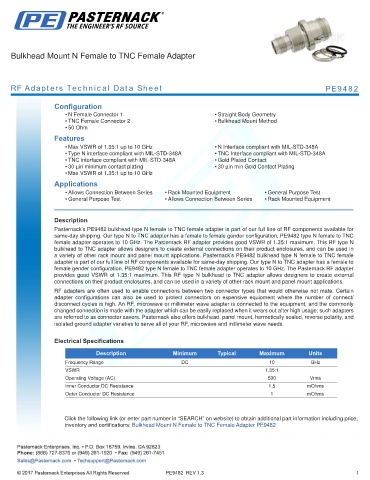

Bulkhead Mount N Female to TNC Female Adapter

RF Adapters Technical Data Sheet PE9482

Configuration
• N Female Connector 1 • Straight Body Geometry
• TNC Female Connector 2 • Bulkhead Mount Method
• 50 Ohm
Features
• Max VSWR of 1.35:1 up to 10 GHz • N Interface compliant with MIL-STD-348A
• Type N interface compliant with MIL-STD-348A • TNC Interface compliant with MIL-STD-348A
• TNC interface compliant with MIL-STD-348A • Gold Plated Contact
• 30 µin minimum contact plating • 30 µin min Gold Contact Plating
• Max VSWR of 1.35:1 up to 10 GHz
Applications
• Allows Connection Between Series • Rack Mounted Equipment • General Purpose Test
• General Purpose Test • Allows Connection Between Series • Rack Mounted Equipment

.
Description
Pasternack’s PE9482 bulkhead type N female to TNC female adapter is part of our full line of RF components available for
same-day shipping. Our type N to TNC adapter has a female to female gender configuration. PE9482 type N female to TNC
female adapter operates to 10 GHz. The Pasternack RF adapter provides good VSWR of 1.35:1 maximum. This RF type N
bulkhead to TNC adapter allows designers to create external connections on their product enclosures, and can be used in
a variety of other rack mount and panel mount applications. Pasternack’s PE9482 bulkhead type N female to TNC female
adapter is part of our full line of RF components available for same-day shipping. Our type N to TNC adapter has a female to
female gender configuration. PE9482 type N female to TNC female adapter operates to 10 GHz. The Pasternack RF adapter
provides good VSWR of 1.35:1 maximum. This RF type N bulkhead to TNC adapter allows designers to create external
connections on their product enclosures, and can be used in a variety of other rack mount and panel mount applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 10 GHz
VSWR 1.35:1
Operating Voltage (AC) 500 Vrms
Inner Conductor DC Resistance 1.5 mOhms
Outer Conductor DC Resistance 1 mOhms

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bulkhead Mount N Female to TNC Female Adapter PE9482

PE9482 REV 1.3 1
