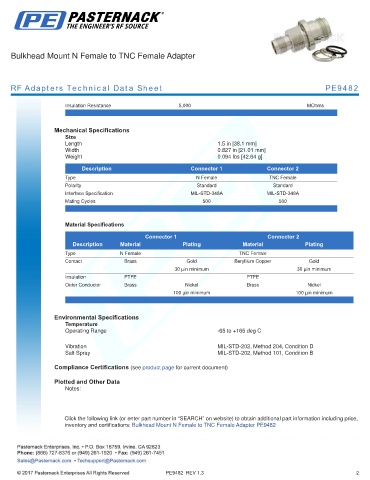

Bulkhead Mount N Female to TNC Female Adapter

RF Adapters Technical Data Sheet PE9482

Insulation Resistance 5,000 MOhms
. .

Mechanical Specifications
Size
Length 1.5 in [38.1 mm]
Width 0.827 in [21.01 mm]
Weight 0.094 lbs [42.64 g]
.
Description Connector 1 Connector 2
Type N Female TNC Female
Polarity Standard Standard
Interface Specification MIL-STD-348A MIL-STD-348A
Mating Cycles 500 500
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type N Female TNC Female
Contact Brass Gold Beryllium Copper Gold
30 µin minimum 30 µin minimum
Insulation PTFE PTFE
Outer Conductor Brass Nickel Brass Nickel
100 µin minimum 100 µin minimum
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.
Vibration MIL-STD-202, Method 204, Condition D
Salt Spray MIL-STD-202, Method 101, Condition B

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bulkhead Mount N Female to TNC Female Adapter PE9482

PE9482 REV 1.3 2
