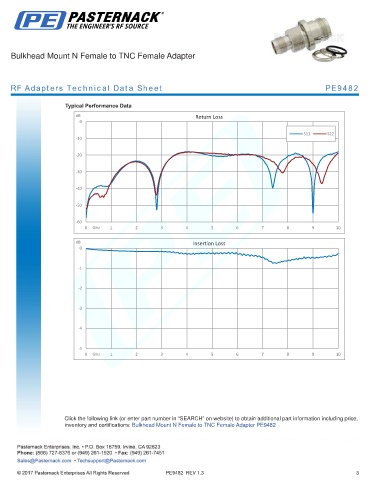

Bulkhead Mount N Female to TNC Female Adapter
RF Adapters Technical Data Sheet PE9482
Typical Performance Data
dB Return Loss
0
S11 S22
-10
-20
-30
-40
-50
-60
0 GHz 1 2 3 4 5 6 7 8 9 10
dB Insertion Loss
0
-1
-2
-3
-4
-5
0 GHz 1 2 3 4 5 6 7 8 9 10
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bulkhead Mount N Female to TNC Female Adapter PE9482
PE9482 REV 1.3 3
